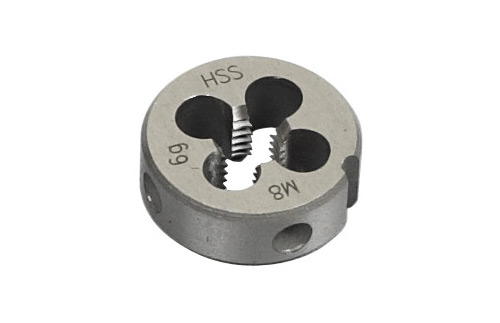

DIN223

MACHINE &HAND ROUND THREAD DIES High Speed Steel or Alloy Tool Steel
SIZE	OUTSIDE	MOODEL NO.	SIZE	OUTSIDE	MOODEL NO.
M1*0.2	16*5mm	B111-001	M20*1.5	45*14mm	B111-052
M1*0.25	16*5mm	B111-002	M20*2	45*14mm	B111-053
M1.2*0.2	16*5mm	B111-003	M20*2.5	45*18mm	B111-054
M1.2*0.25	16*5mm	B111-004	M22*1.5	55*16mm	B111-055
M1.4*0.2	16*5mm	B111-005	M22*2	55*16mm	B111-056
M1.4*0.3	16*5mm	B111-006	M22*2.5	55*22mm	B111-057
M1.6*0.2	16*5mm	B111-007	M24*1.5	55*16mm	B111-058
M1.6*0.35	16*5mm	B111-008	M24*2	55*16mm	B111-059
M1.8*0.2	16*5mm	B111-009	M24*3	55*22mm	B111-060
M1.8*0.35	16*5mm	B111-010	M25*1.5	55*16mm	B111-061
M2*0.25	16*5mm	B111-011	M25*2	55*16mm	B111-062
M2*0.4	16*5mm	B111-012	M27*1.5	65*10mm	B111-063
M2.2*0.25	16*5mm	B111-013	M27*2	65*18mm	B111-064
M2.2*0.45	16*5mm	B111-014	M27*3	65*25mm	B111-065
M2.5*0.5	16*5mm	B111-015	M28*1.5	65*18mm	B111-066
M2.5*0.45	16*5mm	B111-016	M28*2	65*18mm	B111-067
M3*0.35	20*5mm	B111-017	M30*1.5	65*18mm	B111-068
M3*0.5	20*5mm	B111-018	M30*2	65*18mm	B111-069
M3.5*0.35	20*5mm	B111-019	M30*3	65*25mm	B111-070
M3.5*0.6	20*5mm	B111-020	M30*3.5	65*25mm	B111-071
M4*0.5	20*5mm	B111-021	M32*1.5	65*18mm	B111-073
M4*0.7	20*5mm	B111-022	M32*2	65*18mm	B111-074
M4.5*0.5	20*7mm	B111-023	M33*1.5	65*18mm	B111-075
M4.5*0.75	20*5mm	B111-024	M33*2	65*18mm	B111-076
M5*0.5	20*5mm	B111-025	M33*3	65*25mm	B111-077
M5*0.8	20*7mm	B111-026	M33*3.5	65*25mm	B111-078
M5.5*0.5	20*5mm	B111-027	M35*1.5	65*18mm	B111-079
M6*0.75	20*7mm	B111-028	M36*1.5	65*18mm	B111-080
M6*1	20*7mm	B111-029	M36*2	65*18mm	B111-081
M7*0.75	25*9mm	B111-030	M36*3	65*25mm	B111-082
M7*1	25*9mm	B111-031	M36*4	65*25mm	B111-083
M8*1	25*9mm	B111-032	M39*1.5	75*20mm	B111-084
M8*1.25	25*9mm	B111-033	M39*2	75*20mm	B111-085
M9*1	25*9mm	B111-034	M39*3	75*30mm	B111-086
M9*1.25	25*9mm	B111-035	M39*4	75*30mm	B111-087
M10*1	30*11mm	B111-036	M40*1.5	75*20mm	B111-088
M10*1.25	30*11mm	B111-037	M40*2	75*20mm	B111-089
M10*1.5	30*11mm	B111-038	M40*3	75*30mm	B111-090
M12*1.25	38*10mm	B111-039	M42*1.5	75*20mm	B111-091
M12*1.5	38*10mm	B111-040	M42*2	75*20mm	B111-092
M12*1.75	38*14mm	B111-041	M42*3	75*30mm	B111-093
M14*1.25	38*10mm	B111-042	M42*4	75*30mm	B111-094
M14*1.5	38*10mm	B111-043	M42*4.5	75*30mm	B111-095
M14*2	38*14mm	B111-044	M45*1.5	90*20mm	B111-096
M15*1.5	38*10mm	B111-045	M45*2	90*20mm	B111-097
M16*1.5	45*14mm	B111-046	M45*3	90*36mm	B111-098
M16*2	45*18mm	B111-047	M45*4	90*36mm	B111-099
M17*1.5	45*14mm	B111-048	M48*1.5	90*22mm	B111-100
M18*1.5	45*14mm	B111-049	M48*2	90*22mm	B111-101
M18*2	45*14mm	B111-050	M48*3	90*36mm	B111-102
M18*2.5	45*18mm	B111-051	M48*4	90*36mm	B111-103

MACHINE& HAND ROUND THREAD DIES High Speed Steel or ALLOY Tool steel
SIZE	OUTSIDE	MOODEL NO.	SIZE	OUTSIDE	MOODEL NO.
M48*5	90*36MM	B111-104	M55*3	105*36MM	B111-115
M50*1.5	90*22MM	B111-105	M55*4	105*36MM	B111-116
M50*2	90*22MM	B111-106	M56*1.5	105*22MM	B111-117
M50*3	90*36MM	B111-107	M56*2	105*22MM	B111-118
M52*1.5	90*22MM	B111-108	M56*3	105*36MM	B111-119
M52*2	90*22MM	B111-109	M56*4	105*36MM	B111-120
M52*3	90*22MM	B111-110	M56*5.5	105*36MM	B111-121
M52*4	90*36MM	B111-111	M60*5.5	105*36MM	B111-122
M52*5	90*36MM	B111-112	M64*6	120*36MM	B111-123
M55*1.5	105*22MM	B111-113	M68*6	120*36MM	B111-124
M55*2	105*22MM	B111-114
