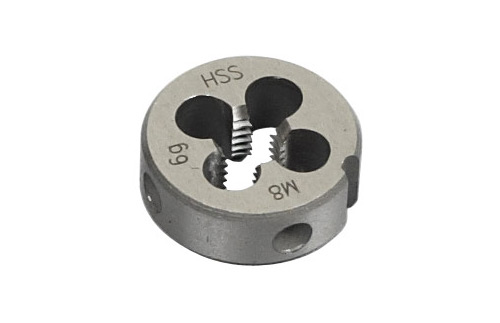

MACHINE &HAND ROUND THREAD DIES |
|||||
|---|---|---|---|---|---|
| SIZE | OUTSIDE |
MOODEL |
SIZE | OUTSIDE |
MOODEL |
| M1*0.2 | 16*5mm | B111-001 | M20*1.5 | 45*14mm | B111-052 |
| M1*0.25 | 16*5mm | B111-002 | M20*2 | 45*14mm | B111-053 |
| M1.2*0.2 | 16*5mm | B111-003 | M20*2.5 | 45*18mm | B111-054 |
| M1.2*0.25 | 16*5mm | B111-004 | M22*1.5 | 55*16mm | B111-055 |
| M1.4*0.2 | 16*5mm | B111-005 | M22*2 | 55*16mm | B111-056 |
| M1.4*0.3 | 16*5mm | B111-006 | M22*2.5 | 55*22mm | B111-057 |
| M1.6*0.2 | 16*5mm | B111-007 | M24*1.5 | 55*16mm | B111-058 |
| M1.6*0.35 | 16*5mm | B111-008 | M24*2 | 55*16mm | B111-059 |
| M1.8*0.2 | 16*5mm | B111-009 | M24*3 | 55*22mm | B111-060 |
| M1.8*0.35 | 16*5mm | B111-010 | M25*1.5 | 55*16mm | B111-061 |
| M2*0.25 | 16*5mm | B111-011 | M25*2 | 55*16mm | B111-062 |
| M2*0.4 | 16*5mm | B111-012 | M27*1.5 | 65*10mm | B111-063 |
| M2.2*0.25 | 16*5mm | B111-013 | M27*2 | 65*18mm | B111-064 |
| M2.2*0.45 | 16*5mm | B111-014 | M27*3 | 65*25mm | B111-065 |
| M2.5*0.5 | 16*5mm | B111-015 | M28*1.5 | 65*18mm | B111-066 |
| M2.5*0.45 | 16*5mm | B111-016 | M28*2 | 65*18mm | B111-067 |
| M3*0.35 | 20*5mm | B111-017 | M30*1.5 | 65*18mm | B111-068 |
| M3*0.5 | 20*5mm | B111-018 | M30*2 | 65*18mm | B111-069 |
| M3.5*0.35 | 20*5mm | B111-019 | M30*3 | 65*25mm | B111-070 |
| M3.5*0.6 | 20*5mm | B111-020 | M30*3.5 | 65*25mm | B111-071 |
| M4*0.5 | 20*5mm | B111-021 | M32*1.5 | 65*18mm | B111-073 |
| M4*0.7 | 20*5mm | B111-022 | M32*2 | 65*18mm | B111-074 |
| M4.5*0.5 | 20*7mm | B111-023 | M33*1.5 | 65*18mm | B111-075 |
| M4.5*0.75 | 20*5mm | B111-024 | M33*2 | 65*18mm | B111-076 |
| M5*0.5 | 20*5mm | B111-025 | M33*3 | 65*25mm | B111-077 |
| M5*0.8 | 20*7mm | B111-026 | M33*3.5 | 65*25mm | B111-078 |
| M5.5*0.5 | 20*5mm | B111-027 | M35*1.5 | 65*18mm | B111-079 |
| M6*0.75 | 20*7mm | B111-028 | M36*1.5 | 65*18mm | B111-080 |
| M6*1 | 20*7mm | B111-029 | M36*2 | 65*18mm | B111-081 |
| M7*0.75 | 25*9mm | B111-030 | M36*3 | 65*25mm | B111-082 |
| M7*1 | 25*9mm | B111-031 | M36*4 | 65*25mm | B111-083 |
| M8*1 | 25*9mm | B111-032 | M39*1.5 | 75*20mm | B111-084 |
| M8*1.25 | 25*9mm | B111-033 | M39*2 | 75*20mm | B111-085 |
| M9*1 | 25*9mm | B111-034 | M39*3 | 75*30mm | B111-086 |
| M9*1.25 | 25*9mm | B111-035 | M39*4 | 75*30mm | B111-087 |
| M10*1 | 30*11mm | B111-036 | M40*1.5 | 75*20mm | B111-088 |
| M10*1.25 | 30*11mm | B111-037 | M40*2 | 75*20mm | B111-089 |
| M10*1.5 | 30*11mm | B111-038 | M40*3 | 75*30mm | B111-090 |
| M12*1.25 | 38*10mm | B111-039 | M42*1.5 | 75*20mm | B111-091 |
| M12*1.5 | 38*10mm | B111-040 | M42*2 | 75*20mm | B111-092 |
| M12*1.75 | 38*14mm | B111-041 | M42*3 | 75*30mm | B111-093 |
| M14*1.25 | 38*10mm | B111-042 | M42*4 | 75*30mm | B111-094 |
| M14*1.5 | 38*10mm | B111-043 | M42*4.5 | 75*30mm | B111-095 |
| M14*2 | 38*14mm | B111-044 | M45*1.5 | 90*20mm | B111-096 |
| M15*1.5 | 38*10mm | B111-045 | M45*2 | 90*20mm | B111-097 |
| M16*1.5 | 45*14mm | B111-046 | M45*3 | 90*36mm | B111-098 |
| M16*2 | 45*18mm | B111-047 | M45*4 | 90*36mm | B111-099 |
| M17*1.5 | 45*14mm | B111-048 | M48*1.5 | 90*22mm | B111-100 |
| M18*1.5 | 45*14mm | B111-049 | M48*2 | 90*22mm | B111-101 |
| M18*2 | 45*14mm | B111-050 | M48*3 | 90*36mm | B111-102 |
| M18*2.5 | 45*18mm | B111-051 | M48*4 | 90*36mm | B111-103 |
|
MACHINE& HAND ROUND THREAD DIES |
|||||
|---|---|---|---|---|---|
| SIZE | OUTSIDE |
MOODEL |
SIZE | OUTSIDE |
MOODEL |
| M48*5 | 90*36MM | B111-104 | M55*3 | 105*36MM | B111-115 |
| M50*1.5 | 90*22MM | B111-105 | M55*4 | 105*36MM | B111-116 |
| M50*2 | 90*22MM | B111-106 | M56*1.5 | 105*22MM | B111-117 |
| M50*3 | 90*36MM | B111-107 | M56*2 | 105*22MM | B111-118 |
| M52*1.5 | 90*22MM | B111-108 | M56*3 | 105*36MM | B111-119 |
| M52*2 | 90*22MM | B111-109 | M56*4 | 105*36MM | B111-120 |
| M52*3 | 90*22MM | B111-110 | M56*5.5 | 105*36MM | B111-121 |
| M52*4 | 90*36MM | B111-111 | M60*5.5 | 105*36MM | B111-122 |
| M52*5 | 90*36MM | B111-112 | M64*6 | 120*36MM | B111-123 |
| M55*1.5 | 105*22MM | B111-113 | M68*6 | 120*36MM | B111-124 |
| M55*2 | 105*22MM | B111-114 | |||
