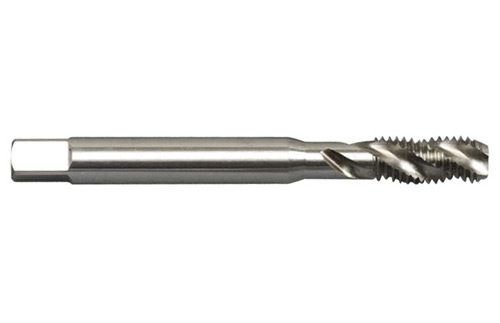

| DIN371/M Macheine tapes High Speed Steel |
|---|
|
SIZE |
OVERALL LENGTH |
EHREAD LENGTH |
MOOEL NO. |
SIZE |
OVERALL LENGTH |
EHREAD LENGTH |
MOOEL NO. |
|---|---|---|---|---|---|---|---|
| M1.4*0.3 | 40 | 7 | 3011-150 | M3*2 | 56 | 11 | 3011-159 |
| M1.6*0.35 | 40 | 8 | 3011-151 | M3.5*0.5 | 56 | 13 | 3011-160 |
| M1.7*0.35 | 40 | 8 | 3011-152 | M4*0.6 | 63 | 13 | 3011-161 |
| M1.8*0.35 | 40 | 8 | 3011-153 | M5*0.7 | 70 | 16 | 3011-162 |
| M2*0.4 | 45 | 8 | 3011-154 | M6*0.8 | 80 | 19 | 3011-163 |
| M2.2*0.45 | 45 | 9 | 3011-155 | M7*1 | 80 | 19 | 3011-164 |
| M2.3*0.4 | 45 | 9 | 3011-156 | M8*1 | 90 | 22 | 3011-165 |
| M2.5*0.45 | 50 | 9 | 3011-157 | M9*1.25 | 90 | 22 | 3011-166 |
| M2.6*0.45 | 50 | 9 | 3011-158 | M10*1.5 | 100 | 24 | 3011-167 |
| DIN371/M Macheine tapes High Speed Steel |
|---|
|
SIZE |
OVERALL LENGTH |
THREAD LENGTH |
MOODEL NO. |
SIZE |
OVERALL LENGTH |
THREAD LENGTH |
MOODEL NO. |
|---|---|---|---|---|---|---|---|
| NO.1-64UNC | 40 | 8 | 3021-051 | NO.1-72UNF | 40 | 8 | 3021-064 |
| No.2-56UNC | 45 | 9 | 3021-052 | No.2-64UNF | 45 | 9 | 3021-065 |
| No.3-48UNC | 50 | 9 | 3021-053 | No.3-56UNF | 50 | 9 | 3021-066 |
| No.4-40UNC | 56 | 11 | 3021-054 | No.4-48UNF | 56 | 11 | 3021-067 |
| No.5-40UNC | 56 | 11 | 3021-055 | No.5-44UNF | 56 | 11 | 3021-068 |
| No.6-32UNC | 56 | 12 | 3021-056 | No.6-40UNF | 56 | 12 | 3021-069 |
| No.8-32UNC | 63 | 13 | 3021-157 | No.8-36UNF | 63 | 13 | 3021-070 |
| No.10-24UNC | 70 | 15 | 3021-058 | No.10-32UNF | 70 | 15 | 3021-071 |
| No.12-24UNC | 80 | 16 | 3021-059 | No.12-28UNF | 80 | 16 | 3021-072 |
| 1/4-20INC | 80 | 17 | 3021-060 | 1/4-25UNF | 80 | 17 | 3021-073 |
| 5/16-18UNC | 90 | 20 | 3021-061 | 5/16-24UNF | 90 | 20 | 3021-074 |
| 3/8-16UNC | 100 | 22 | 3021-062 | 3/8-24UNF | 100 | 22 | 3021-075 |
| No.0-80UNF | 40 | 8 | 3021-063 |
